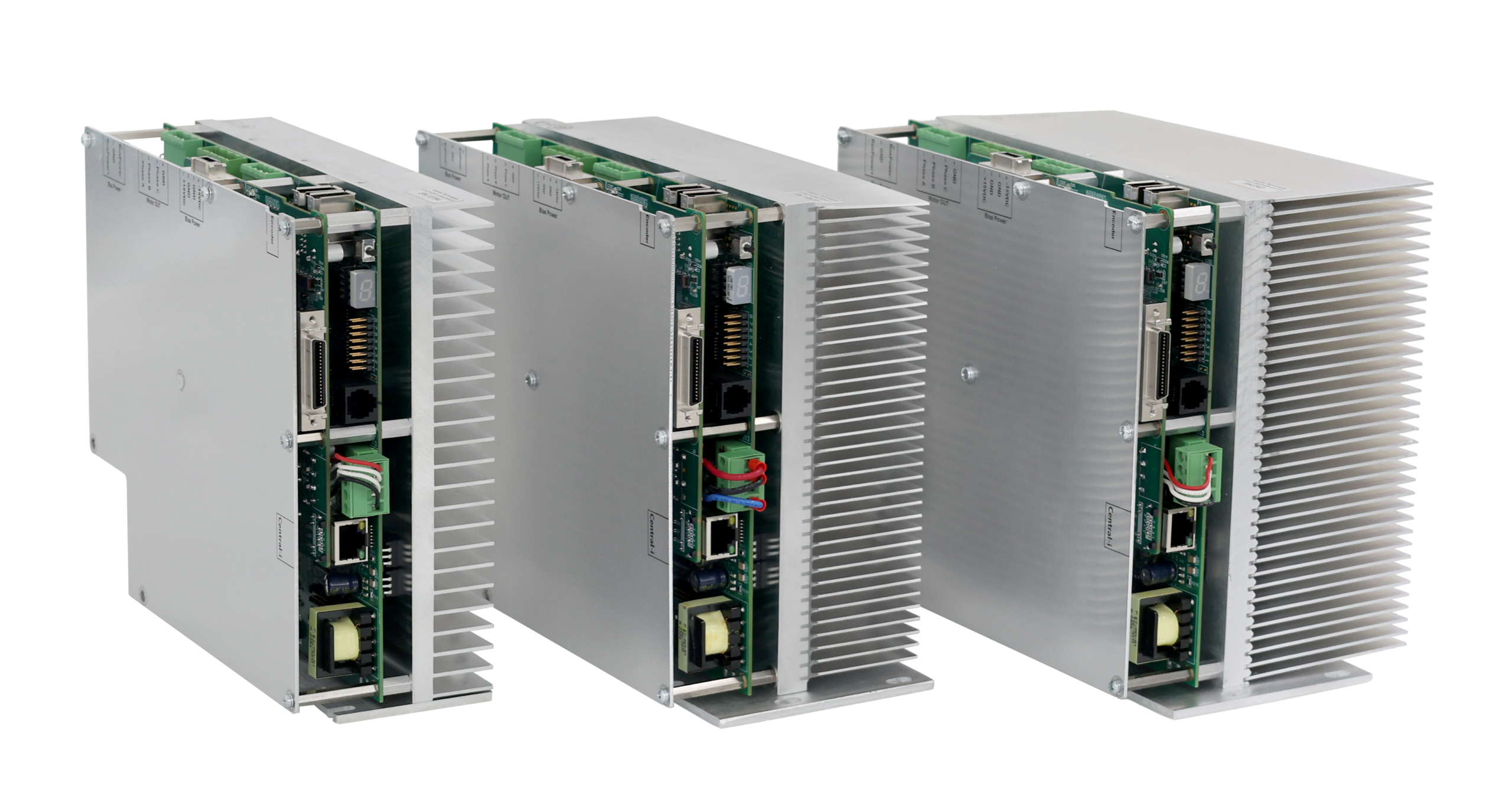

The AGLA101 series are linear amplifiers with low electromagnetic emissions, zero distortion and extremely low drift from the drive electronics. This makes it suitable for ultra-high precision, nanometer level applications.
Each amplifier is equipped with digital and analog IO’s optimized for common industrial applications.
Description | AGLA101-CI-0525 | AGLA101-CI-0825 | AGLA101-CI-1525 | AGLA101-CI-0540 | AGLA101-CI-0840 | AGLA101-CI-1540 |
|---|---|---|---|---|---|---|
Motor Bus Supply Voltage – Bipolar | ±12VDC to ±150VDC | |||||
Bias Supply Voltage – Bipolar | ±15VDC (1000mA each) | |||||
Continuous Current | 15A | |||||
Peak Current
| 25A
| 40A
| ||||
Continuous Power
| 500W | 800W | 1500W | 500W | 800W | 1500W |
Peak Power (25°C)
| 1900W
| 3800W
| ||||
Communication
| Central-i
| |||||
Encoder Ports | 2 | |||||
Optically Isolated Digital Inputs | 8 | |||||
Optically Isolated Digital Outputs | 4 | |||||
Analog Inputs
| 2 (16-bit resolution) | |||||
Analog Outputs
| 2 (16-bit resolution) | |||||
Bi-Directional Differential I/Os
| 5 | |||||
